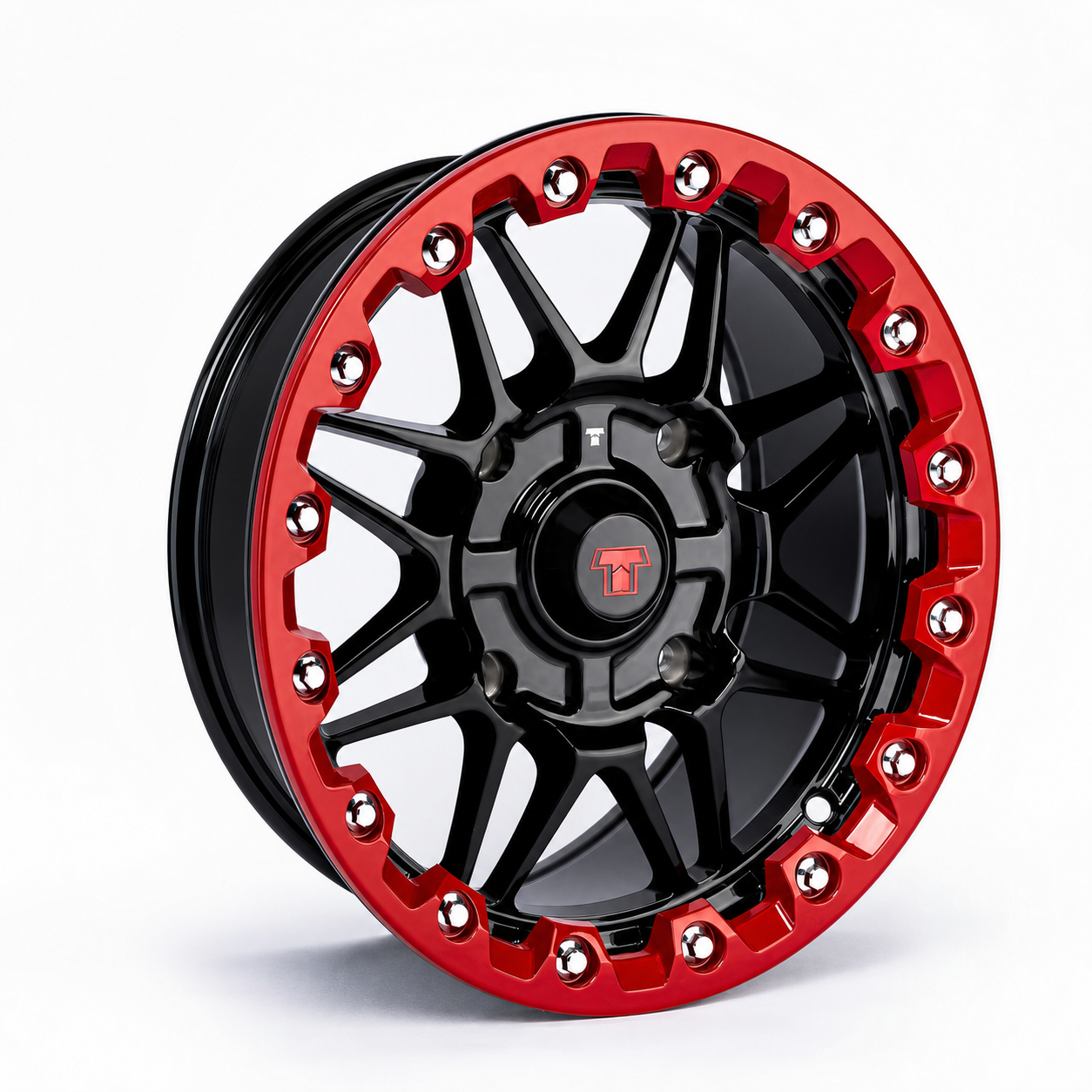

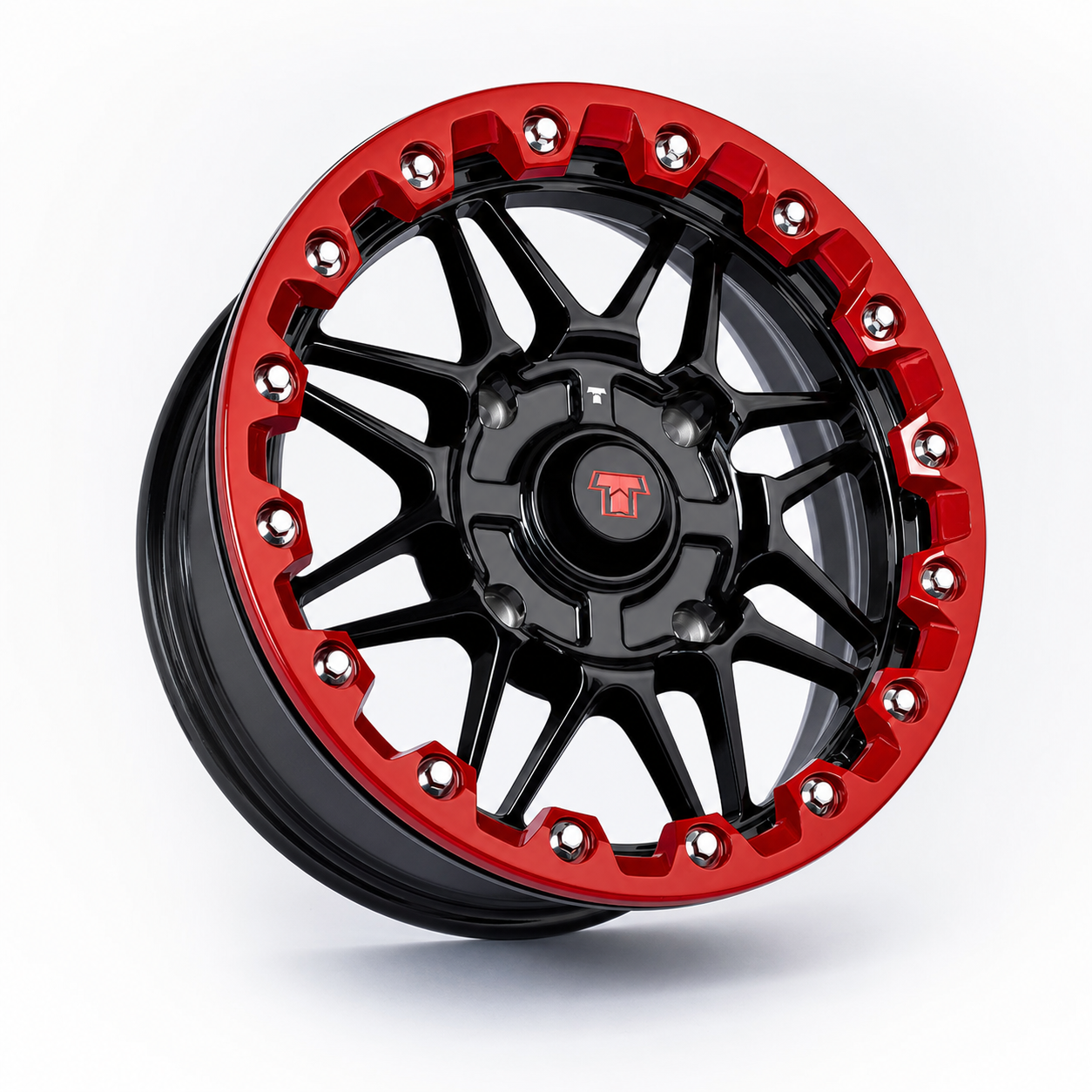

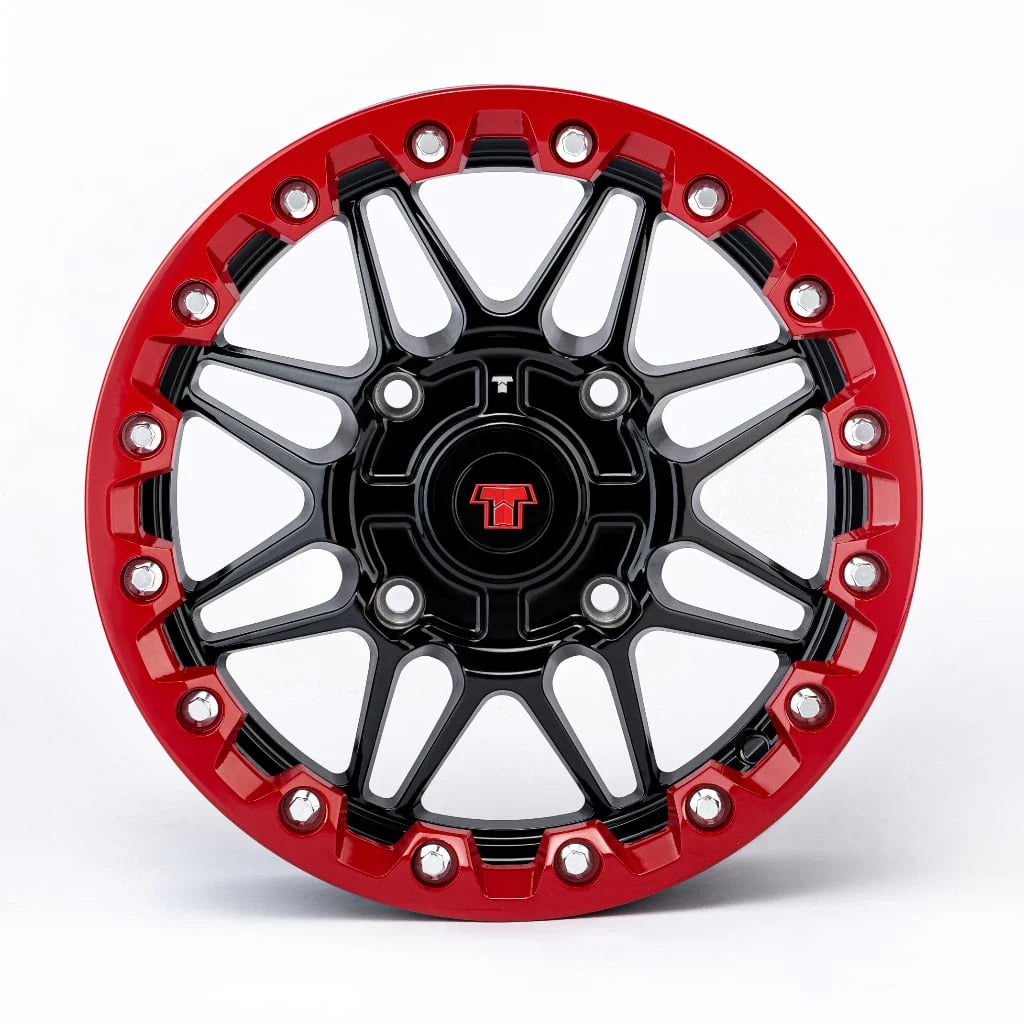

The Terache 14x5 Beadlock Wheel is a narrow mud wheel built for riders who need maximum control, traction, and stability in ultra-deep mud, water crossings, and extreme off-road conditions. As the narrow version of our popular 14x7 Terache beadlock wheel, the 14x5 design is ideal for serious mud riders running large-diameter ATV and UTV tires on 14-inch wheels.
The narrower wheel profile helps reduce flotation, and improve stability in deep mud and water. By pulling the tire beads inward, the 14x5 beadlock wheel can also help improve side lug bite and traction, giving large mud tires a more aggressive footprint in deep, heavy terrain.
Featuring a true beadlock design, this wheel helps secure the tire bead when running low PSI on demanding off-road trails. With a 4x137 4x136 bolt pattern, 3+2 offset / ET10 fitment the Terache 14x5 Beadlock Wheel is an excellent upgrade for Can-Am, Honda UTVs, and Honda ATVs when used with our custom Terache wheel adapters.
Important Fitment Note:
Lug nuts and valve stems are not included. Uses standard 0.453-inch valve stems. Some OEM lug nuts may be too large for these wheels. ATVs and UTVs with M10x1.25 wheel studs should use 14mm hex lug nuts. Side-by-sides with M12x1.5 studs should use spline lug nuts. Always verify bolt pattern, stud size, offset, center bore, tire size, and vehicle clearance before installation. Apply anti-seize and torque beadlock ring bolts to 15 ft-lb. Torque lug nuts to OEM spec. These wheels will fit machines with 4/136 or 4/137 lug patten. Center bore is 85mm.
