Race Proven
Rubicon 700 & Rincon 680 47% Forged Reduction

Rubicon 700 & Rincon 680 47% Forged Reduction

$359.99
Add your machine to check fitment.
47% More torque
Forged Chromoly gears
Quiet Gear mesh
650–700 Fitment

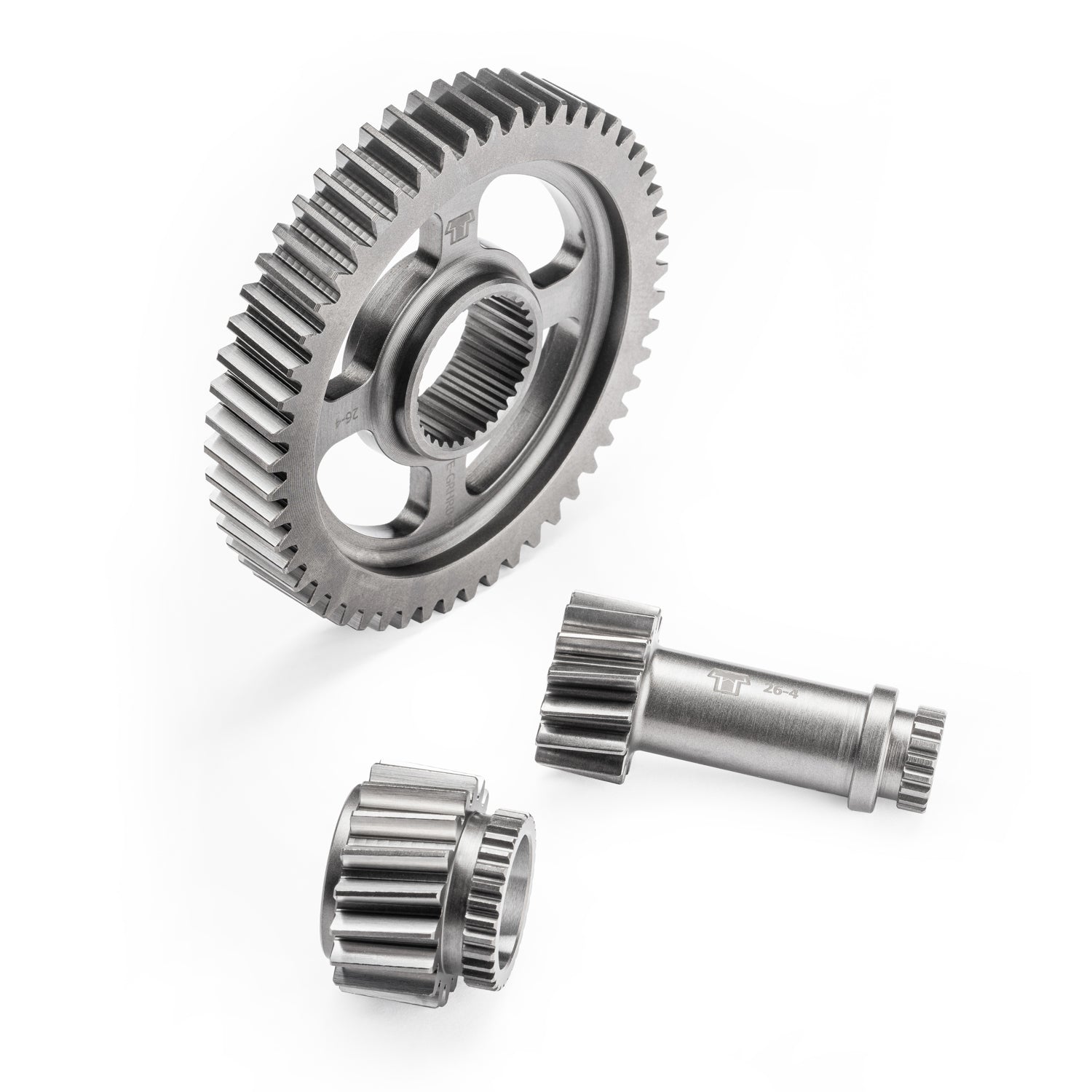

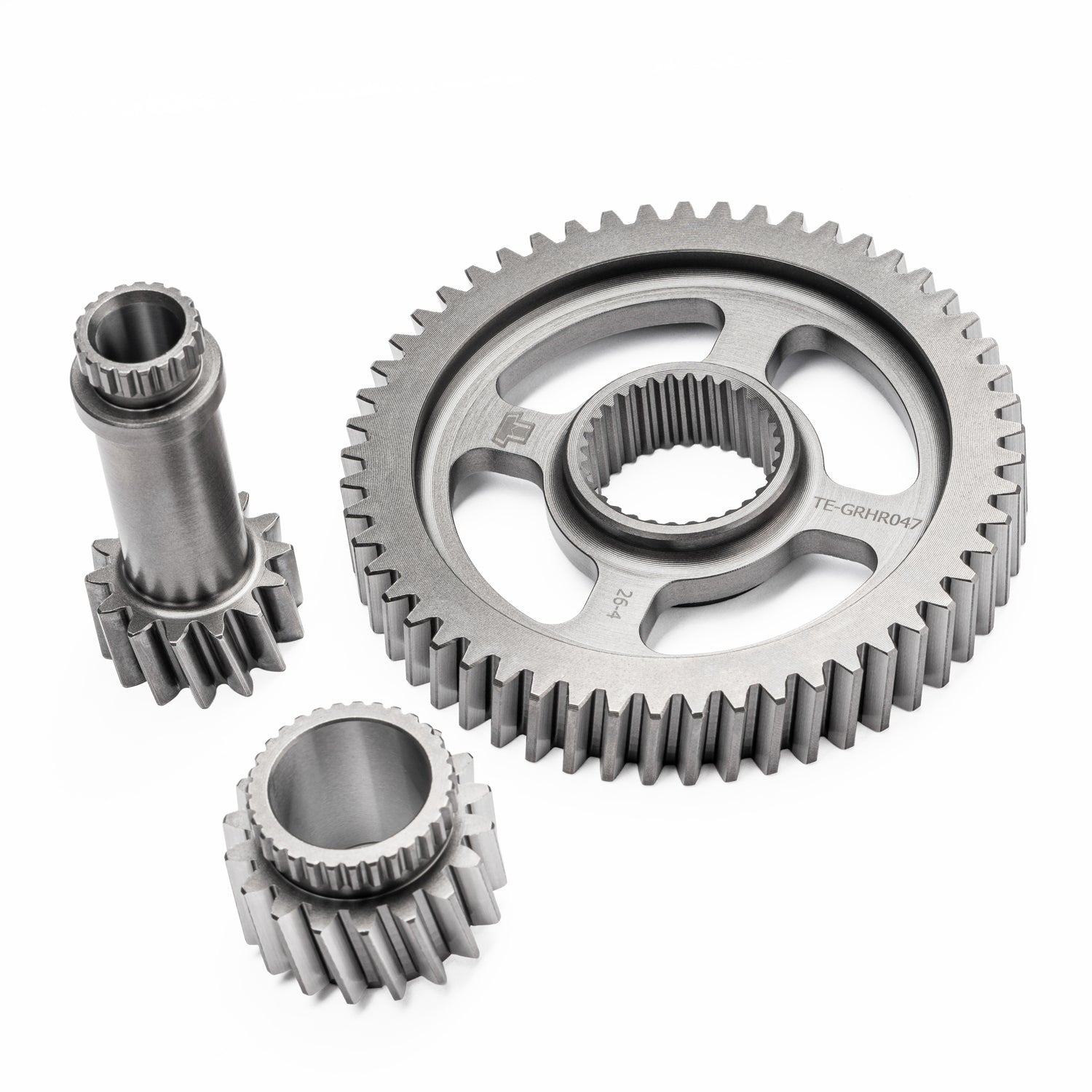

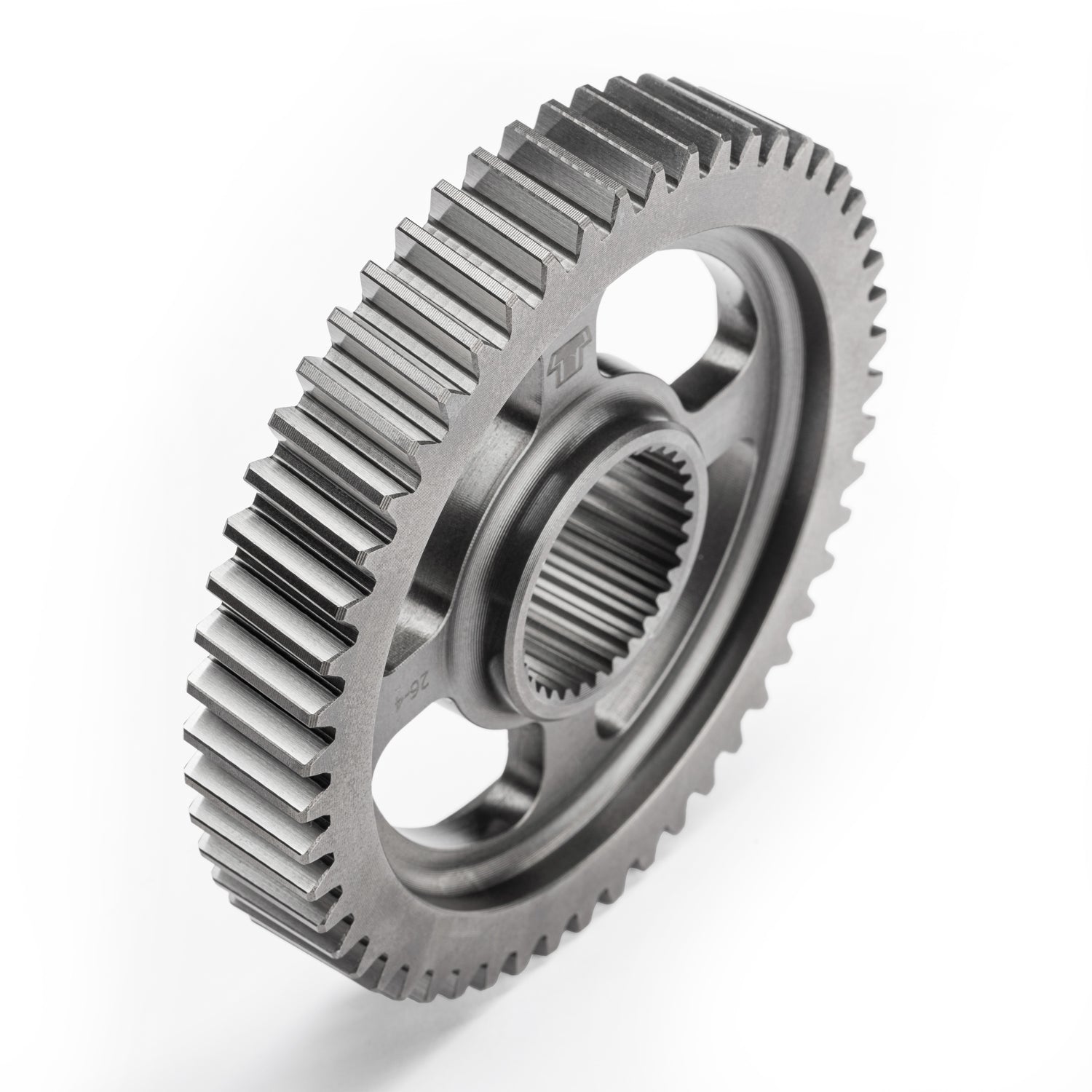

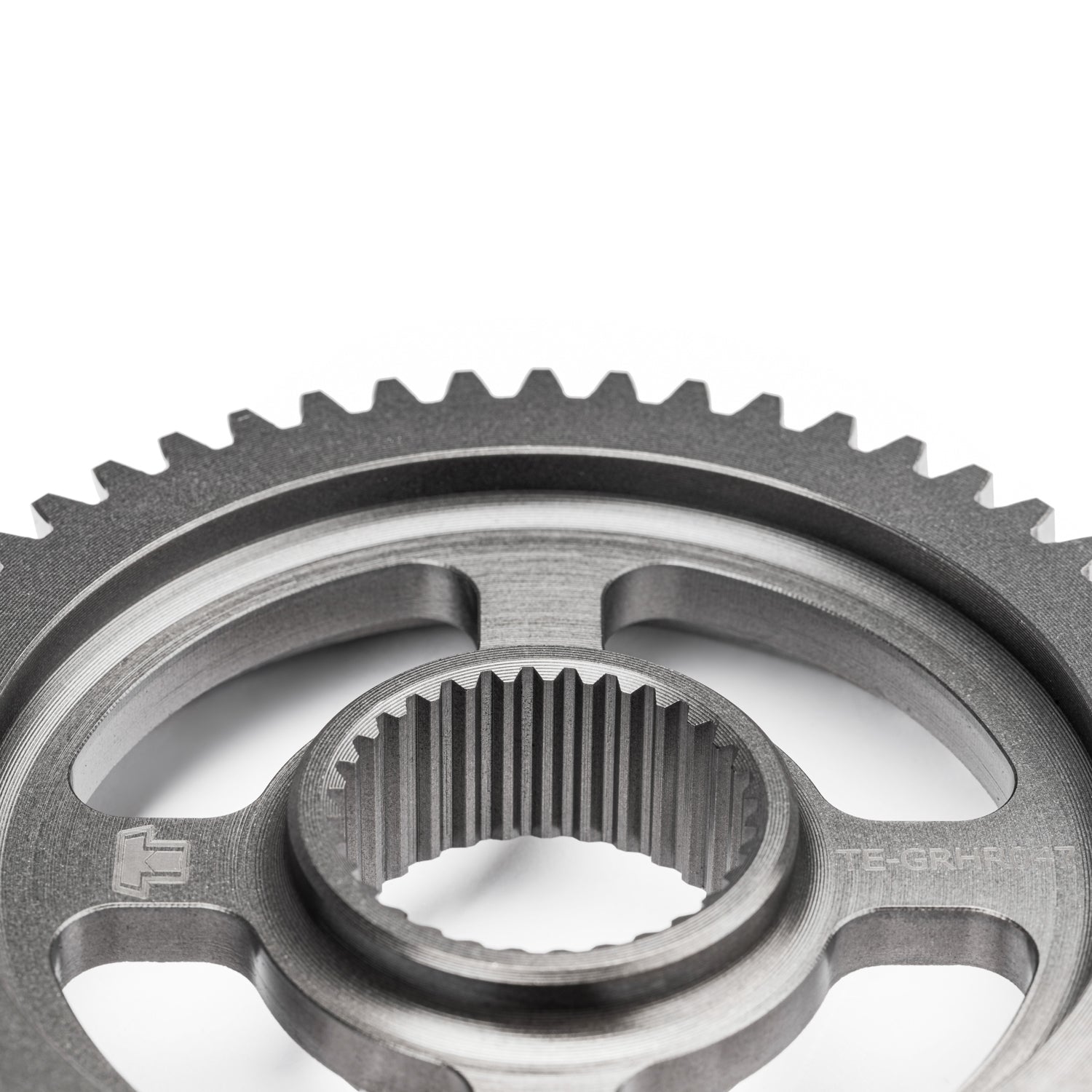

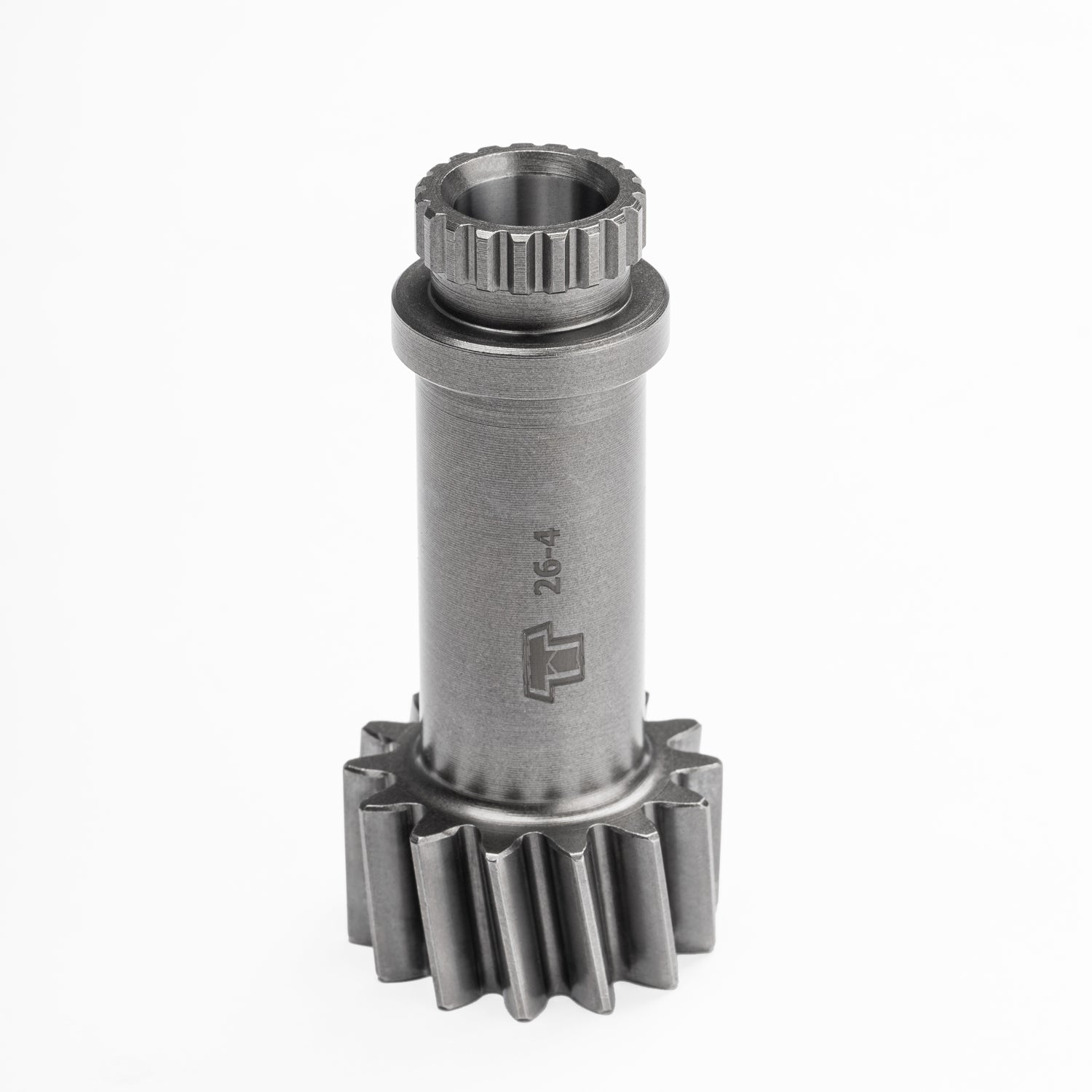

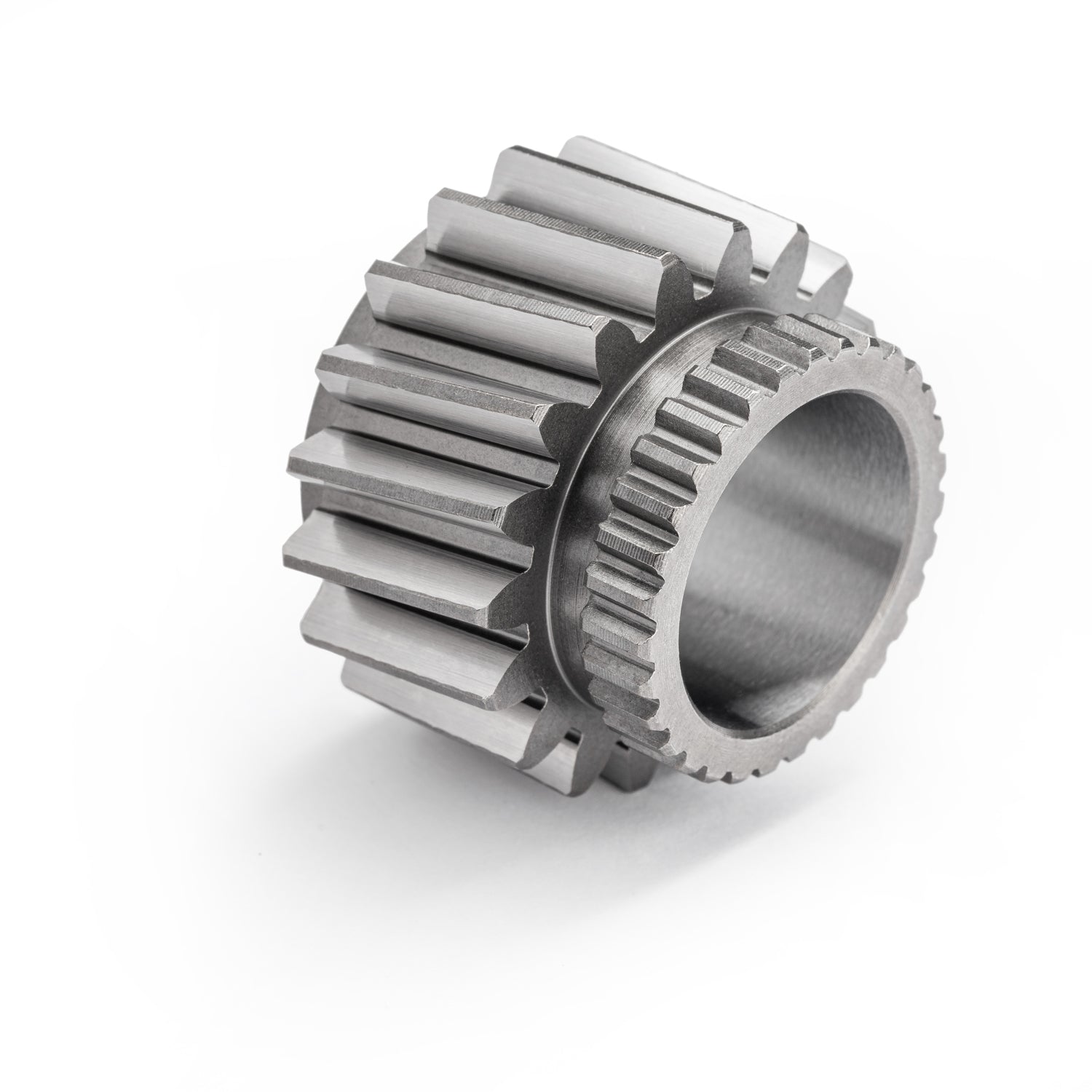

The Ultimate Honda 650/680/700 Gear Reduction is built for riders who need a serious gearing upgrade for larger tires, deep mud, and demanding off-road conditions.

  • Custom forged gear set providing 47% more torque
  • Ultra-smooth tooth profile and gear mesh for quiet operation and efficient torque transfer
  • Chromoly forged and heat-treated gear set engineered for increased strength and long-term performance.

Fitment:
Fits Honda 650, 680, and 700 4x4 ATVs, including Rincon and Rubicon 700 models.

These gears are not recommended for the Pioneer 700 UTV. These gears would result in a smaller reduction in the UTV and require additional mods in that transmission.

Important Fitment Note:
These gears install in the rear of the ATV engine. Professional installation is required. Installation requires very slight clearancing of the transmission case, with less than 1mm of case material removed to fit the larger output gear. This can be achieved using a polishing tool or burr. We do not recommend using auto shift mode with the reduction installed.



Honda

  • Rincon 680 2006–2023
  • Rubicon 700 2024–2027
  • Rincon 650 2003–2005

Each Terache Gear reduction is backed by a Limited 10 year Warranty, ensuring protection against manufacturing defects for the original purchaser. Professional installation is required to retain this warranty. Furthermore, Terache offers coverage of up to $1,000.00 of parts and labor to replace a gear reduction and repair any damage resulting from gear failure. Please note that all warranty claims will undergo review and require approval from the Terache technical team. This warranty does not cover damaged related to improper installation, always refer to the OEM service manual.
